Soraa AC-FR-3636-00-S1 SORAA SNAP 2 inch diameter Flat Top 36° X 36°

Name: Soraa AC-FR-3636-00-S1 SORAA SNAP 2 inch diameter Flat Top 36° X 36°
Brand: SORAA
Price: 8.2 USD
Availability: InStock

Manufacturer Number: Soraa - 00337

Series: SNAP

$8.20

Sale

Shipping calculated at checkout.

Product variants

Quantity

Free & Easy Returns In Store or Online

Return this item within 30 days of purchase.

Read Return Policy

Product Description

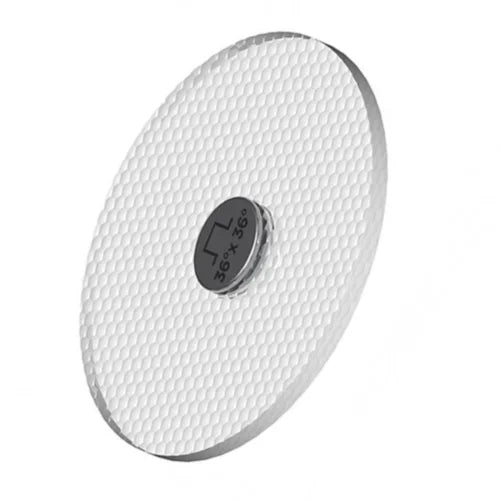

The Soraa SNAP 2-inch Flat Top 36° x 36° reshapes a narrow-spot Soraa beam into an even square pool of light from center to edge. With 90% lumen transmissivity, the lens preserves nearly all of the lamp's output while eliminating the bright hot-spot that causes video camera saturation. That makes it a strong fit for critical video surveillance, broadcast sets, retail merchandising, and any application that needs uniform field illumination across a defined square area. The 50 mm diameter, 2 mm-thick lens snaps onto any narrow-spot Soraa lamp via the self-centering magnetic interconnect with a 0.45 lb-F holding force, and stacks with other SNAP accessories.

About This Item

EVEN 36° X 36° FIELD — Provides flat 36° x 36° square illumination from center to edge, replacing the typical hot-spot of a narrow-spot beam with a uniform pool of light.
VIDEO-FRIENDLY OUTPUT — Eliminates video camera saturation, making the lens a fit for critical video surveillance, security cameras, and on-camera scenes that demand even field illumination.
90% LUMEN TRANSMISSIVITY — Passes 90% of the lamp's lumens through the lens, so beam reshaping does not cost meaningful output, and the source's full performance reaches the target.

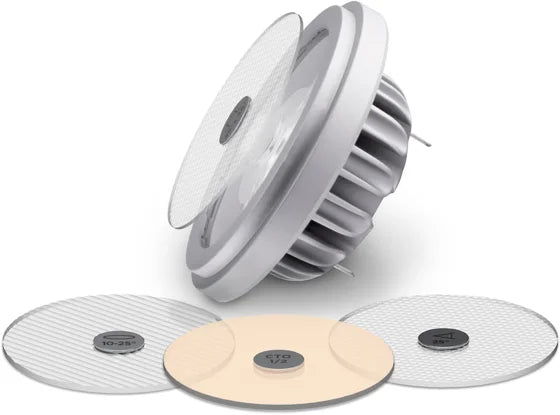

MAGNETIC SNAP ATTACHMENT — Self-centering magnetic interconnect snaps onto any narrow-spot Soraa lamp with a 0.45 lb-F holding force — no clips, no tools, no field modifications required.
LOW-PROFILE 2 MM BUILD — Just 2 mm thick at 50 mm diameter — sized for the 2-inch SNAP optical platform without adding visible bulk to recessed cans, track heads, or display fixtures.

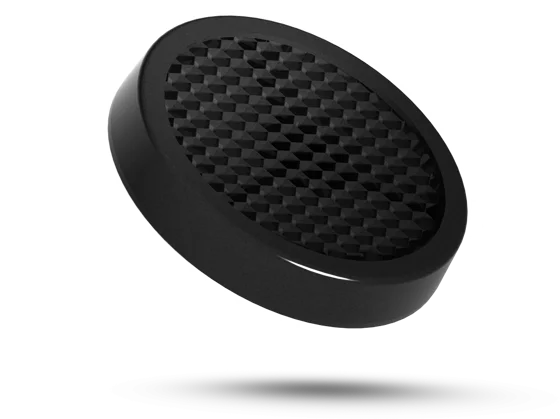

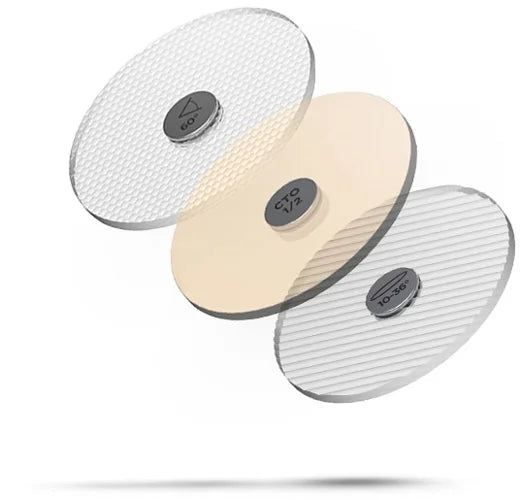

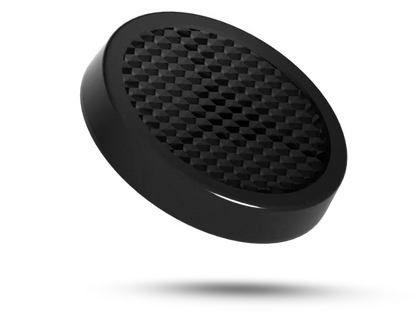

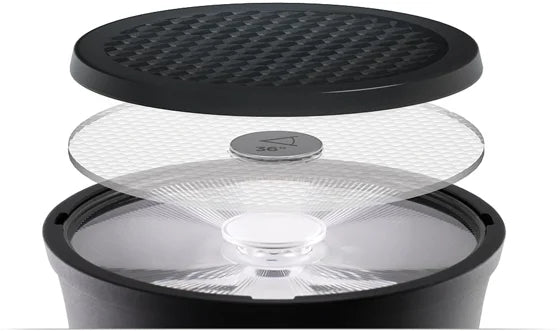

STACKABLE WITH OTHER SNAPS — Combine with louvers, beam spreaders, or CCT-shifting SNAP accessories for layered beam control; place CCT shifters on the lamp first for best results.
INTEGRATED LED ACCESSORY — The award-winning SNAP SYSTEM is the first LED lamp/accessory solution optimized to work as an integrated system, built on Soraa's GaN-on-GaN LED technology.

+ Read More

Welcome to Payless-4-Lighting where you can find the brands you need at the prices you want! Contact us for Quantity Discounts and say hello to our NEVER ENDING LOWER PRICES You can contact CRAZY STU'e to see if there is quantity pricing on Bulbs and Ballasts orders of $150.00 or more.(paylesslighting@gmail.com) And even Lower Prices for Hotels,Property Management, City, State, US Government

View full details

Features & Specs

Specific Uses for Product	Beam reshaping for narrow-spot Soraa LED lamps; even square field illumination
Lumen Transmissivity	90%
Beam Angle	36° x 36°
Indoor / Outdoor Usage	Indoor

Item Details

Brand Name	Soraa
Model Number	AC-FR-3636-00-S1
Manufacturer	Soraa
Manufacturer Part Number	00337
Item Type Name	SNAP Lens — Flat Top 36° x 36°
UPC	849565003367

Measurements

Diameter	50 mm
Magnetic attach force	0.45 lb-F
Size	2"
Thickness	2 mm

Style

Shape	Square (36° x 36°)
Style Name	Flat Top

Free delivery

Orders $50+

30-Day returns

Hassle-free

Authorized dealer

Genulne bulbrite

secure checkout

256-bit SSL

real support

216-533-9876

Frequently Asked Questions

We offer a 30-day return policy for all unused products in their original packaging.

Standard shipping usually takes 5–7 business days depending on your location.

Yes, we ship internationally to selected countries with additional shipping charges.

Yes, once your order is shipped, you will receive a tracking link via email.

You can contact our support team through email or live chat available on our website.

SORAA

The Story Behind Soraa

Soraa is a pioneer in full-spectrum LED lighting, focused on producing the most natural light possible. The company began manufacturing LED lamps in 2013 and has continued to innovate with professional and consumer light bulbs, luminaires, and optical light engines. The award-winning Soraa SNAP SYSTEM, built on Soraa's GaN-on-GaN LED technology, was the first LED lamp and accessory solution engineered to work as an integrated system, redefining how accessories attach and behave on an LED source.

Where the SNAP Flat Top Is Used

Soraa lamps and SNAP accessories like the Flat Top lens are specified in museums, retail stores, hotels, and restaurants — venues where an unmatched quality of light is needed to enhance the atmosphere and emotion of the space. The Flat Top 36° x 36° also gets pulled into critical video surveillance and on-camera applications where uniform, flicker-clean illumination across a square field is the priority.
