Soraa AC-GC-1717-00-S1 SORAA SNAP 2 inch diameter Circular Beam Spreader 17°

Product Description

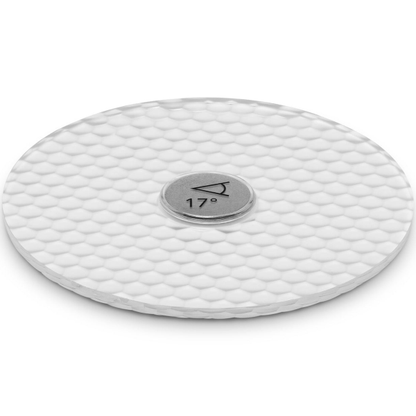

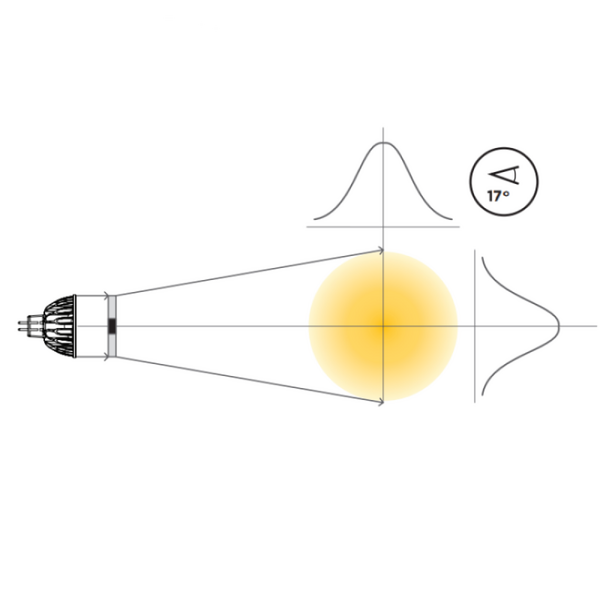

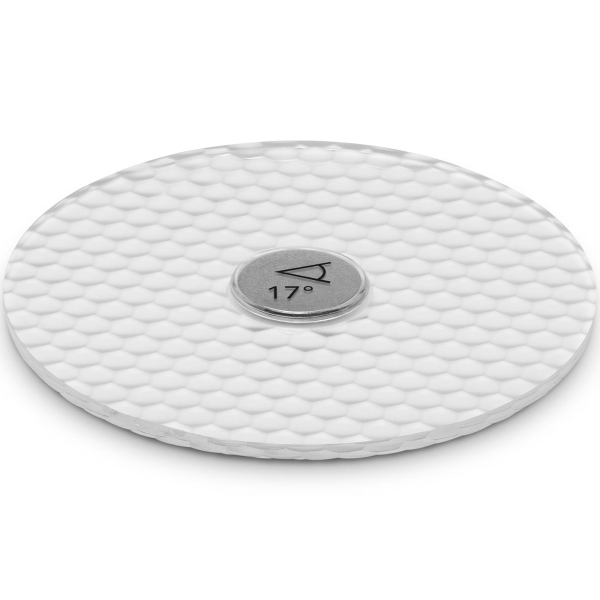

The Soraa SNAP 2-inch Circular Beam Spreader 17° widens a narrow-spot Soraa beam into a clean 17° circular distribution. By snapping a single SKU of narrow-spot lamp on site and adding the spreader, specifiers reduce the number of beam-angle SKUs they have to stock, shortening design and sales cycles and giving installers maximum flexibility right up to install. With 90% lumen transmissivity, the lens preserves nearly all of the lamp's output. The 50 mm diameter, 2 mm-thick lens snaps onto any narrow-spot Soraa lamp via the self-centering magnetic interconnect with a 0.45 lb-F holding force.

About This Item

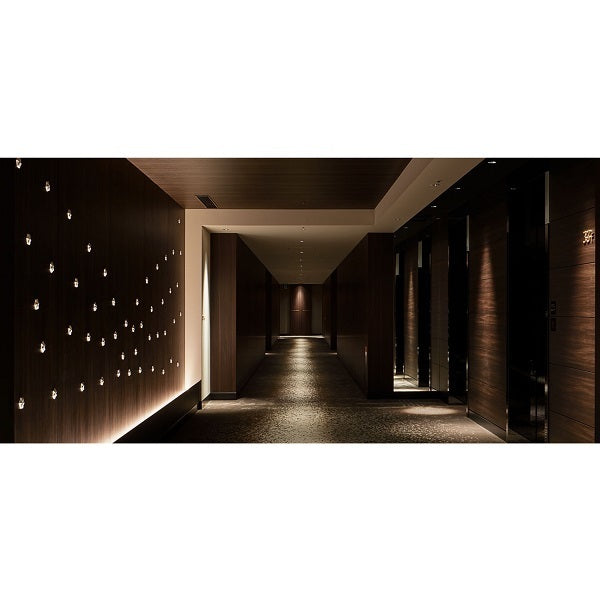

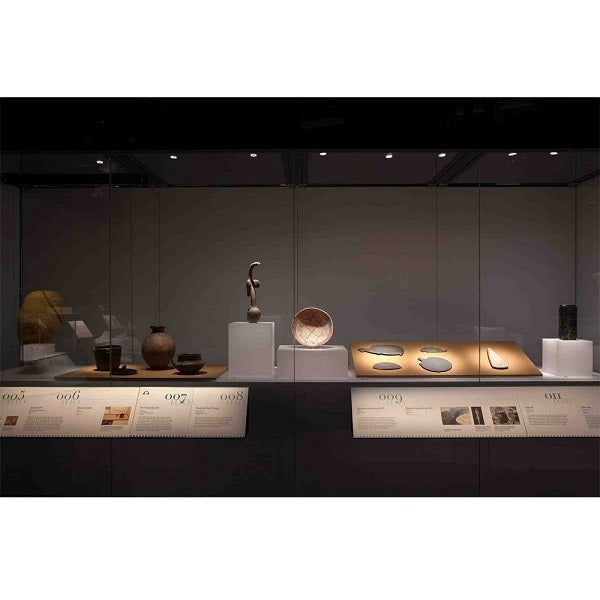

• SPREADS BEAM TO 17° — Widens a narrow-spot Soraa beam into a clean 17° circular distribution suitable for accent, display, or general illumination across retail, gallery, and hospitality fixtures.
• REDUCES BEAM-ANGLE SKUS — Lets specifiers stock a single narrow-spot lamp SKU and dial in the final beam angle on site by snapping on the optic, lowering both inventory costs and risk of stockouts.
• FLEXIBILITY UNTIL INSTALL — Shortens specification, design, and sales cycles by leaving the final beam angle decision until the moment the lamp is installed in the fixture and aimed at the target.
• 90% LUMEN TRANSMISSIVITY — Passes 90% of the lamp's lumens through the lens, so spreading the beam does not cost meaningful output.
• MAGNETIC SNAP ATTACHMENT — Self-centering magnetic interconnect snaps onto any narrow-spot Soraa lamp with a 0.45 lb-F holding force — no clips, no tools, no field modifications required.
• LOW-PROFILE 2 MM BUILD — Just 2 mm thick at 50 mm diameter — sized for the 2-inch SNAP optical platform without adding visible bulk to recessed cans or track heads.

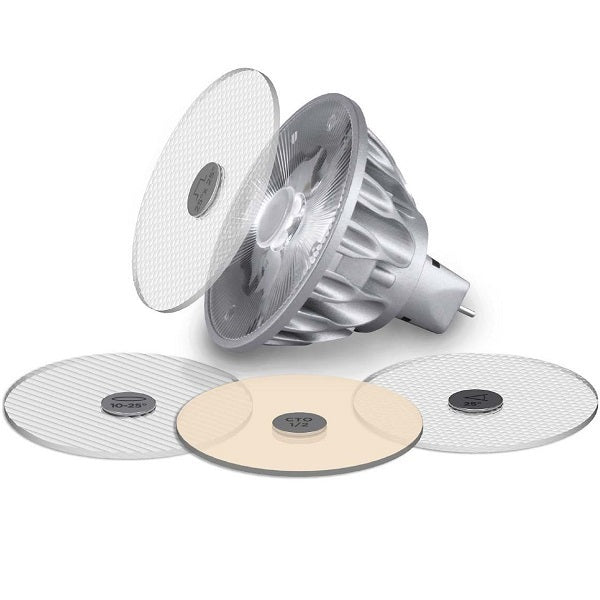

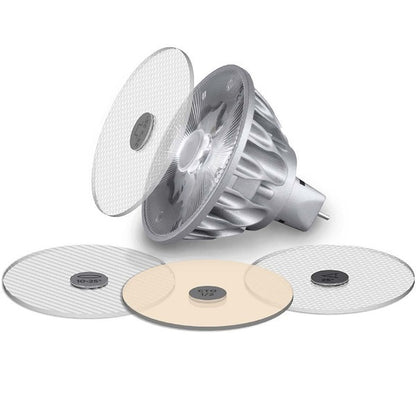

• STACKABLE WITH OTHER SNAPS — Combine with louvers, color filters, or CCT-shifting SNAP accessories for layered beam control; place CCT shifters on the lamp first for best results.
